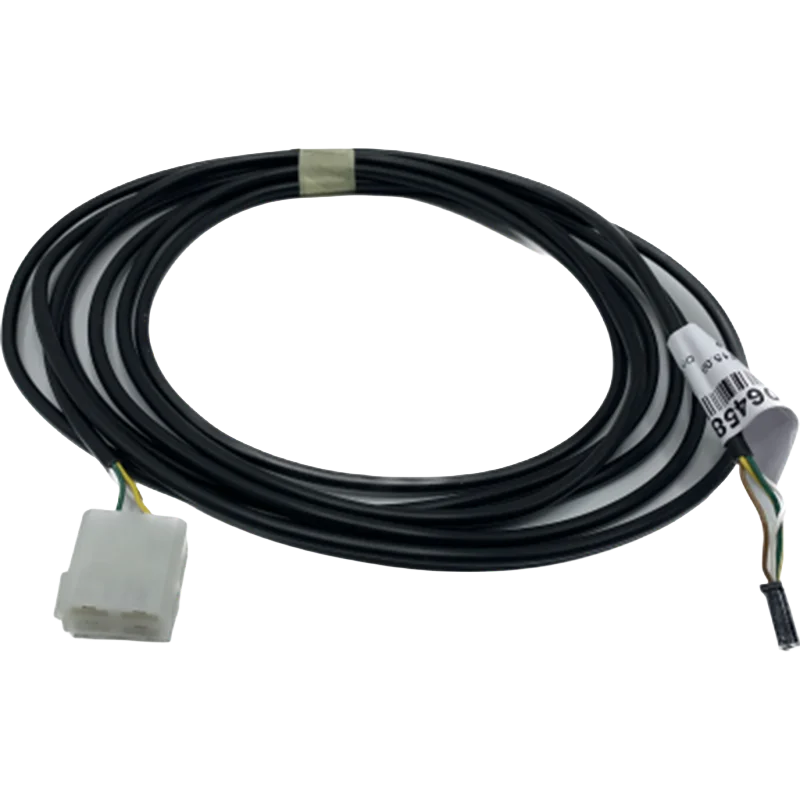

CBE B3 Water Tank to 12V Box Cable – 6m (006458)

CBE B3 Water Tank to 12V Box Cable – 6m (006458)

The CBE B3 cable connects the water tank level sensor to the CBE 12V distribution box — an essential wiring link for water level monitoring in the CBE PC system. At 6 metres, its suited to installations where the tank and distribution box are some distance apart.

Key Features

• Genuine CBE B3 water tank cable — correct specification for PC LED display systems
• Connects water tank probe to the CBE 12V distribution box
• 6-metre cable length — suitable for installations with greater separation between components
• Compatible with CBE panels featuring an LED (not digital) display — including PC100 and PC110
• Direct replacement for damaged or incorrectly specified B3 cable

Important Compatibility Note

The B3 water tank cable is designed for CBE panels with an LED display — for example the PC100 and PC110. It is not suitable for panels with a digital display such as the PC200 or PC210 (which use the B2 cable). Always confirm your panel type before ordering.

Installation

Route and connect in accordance with the CBE wiring diagram for your specific panel and box configuration. Suitable for competent DIY installation by someone familiar with 12V leisure vehicle wiring.

Part number: 006458 (also referenced as 6458)
