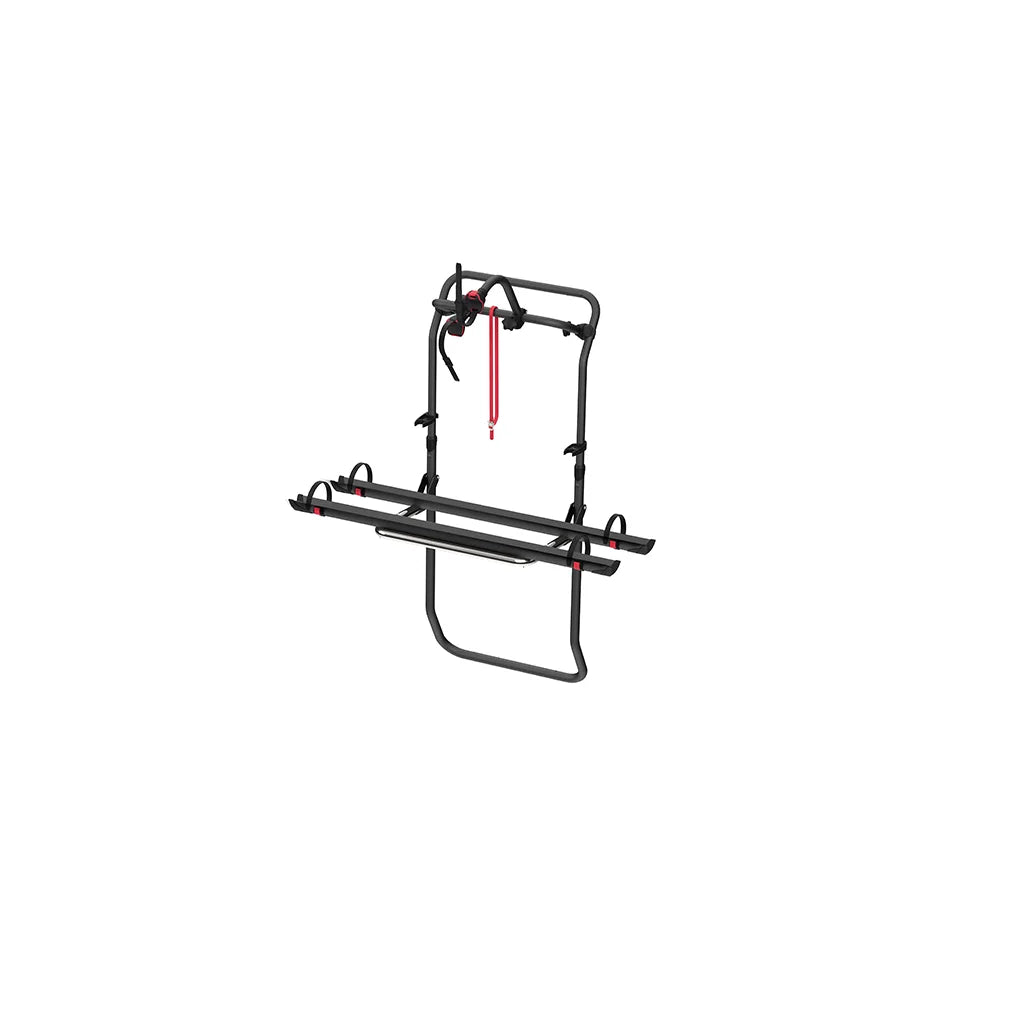

Fiamma Carry-Bike Frame Deep Black 02096-35A

Fiamma Carry-Bike Frame Deep Black 02096-35A

Key Features

Designed for van conversions using a dedicated installation frame (sold separately)

Carries 2 bikes as standard, expandable to 3 bikes (or 2 e-bikes) with additional Fiamma parts

Aluminium finish for durability and lightweight performance

Compatible with e-bikes (up to 2)

Licence plate carrier is available separately

Vehicle-Specific Installation Kits

Kit Frame Ducato (08753-01-)

For: Fiat Ducato III-IV, Citron Jumper II-III, Peugeot Boxer II-III (2006+, H2/H3)

Not suitable for vehicles with 270 hinge system Kit Frame Sprinter (08753-02-)

For: Mercedes Sprinter ( 2018, high/super high roof) Kit Frame Crafter (08753-03-)

For: VW Crafter II / MAN TGE ( 2017, H3/H4)

Not suitable for vehicles with 270 hinge system Whats Included

2 x Rail Plus (bike rails)

Bike-Block Pro 1 Pro 3 (locking systems)

Security Strip

Specifications

Colour: Deep Black

Bike Capacity: 2 (standard), 3 (max)

Max Load: 50 kg

E-Bike Compatible: Yes (up to 2)

Weight: 9.4 kg

Distance Between Rails: 15 cm

Licence Plate Carrier: Optional (sold separately)

Key Features

• Rail Plus
• New design for increased torsion and flexural strength Kit Frame
• Stainless steel frame Secure fastening
• Using the hinges of the vehicle Stainless steel rail support base
• For supporting up to 3 standard bikes or 2 E-Bikes Installation
• On the double rear door of the vehicle

Specifications

• Vehicle type - Van Conversions
• Weight - 9.4kg
• Max load - 50kg
• Colour - Deep Black

Part number: 02096-35A | Barcode: 8004815437459
