Fiamma Cb Ford Custom Nugget/Plus Hr Db 02096-07A

Fiamma Cb Ford Custom Nugget/Plus Hr Db 02096-07A

Tailgate Mount: Curved profile fits the lower part of the tailgate, matching the vehicles shape.

Bike Capacity:

Standard: 2 bikes (including e-bikes)

Expandable: Up to 3 bikes (with additional Fiamma parts)

Max Load: 50 kg

E-Bike Compatible: Yes

Compatibility: Ford Transit Custom Nugget (from 2015)

Ford Transit Custom Nugget Plus (from 2012)

Ford Cap Land (from 2015)

Ford Cap Fan (2015-2018)

Ford Cap Coast (from 2018)

Ford Cap Life (from 2019, H1 roof)

Supplied With: 1 x Bike-Block Pro 1 (locking system)

1 x Bike-Block Pro 3 (locking system)

Security Strip

2 x Rail Plus (bike rails)

Brackets

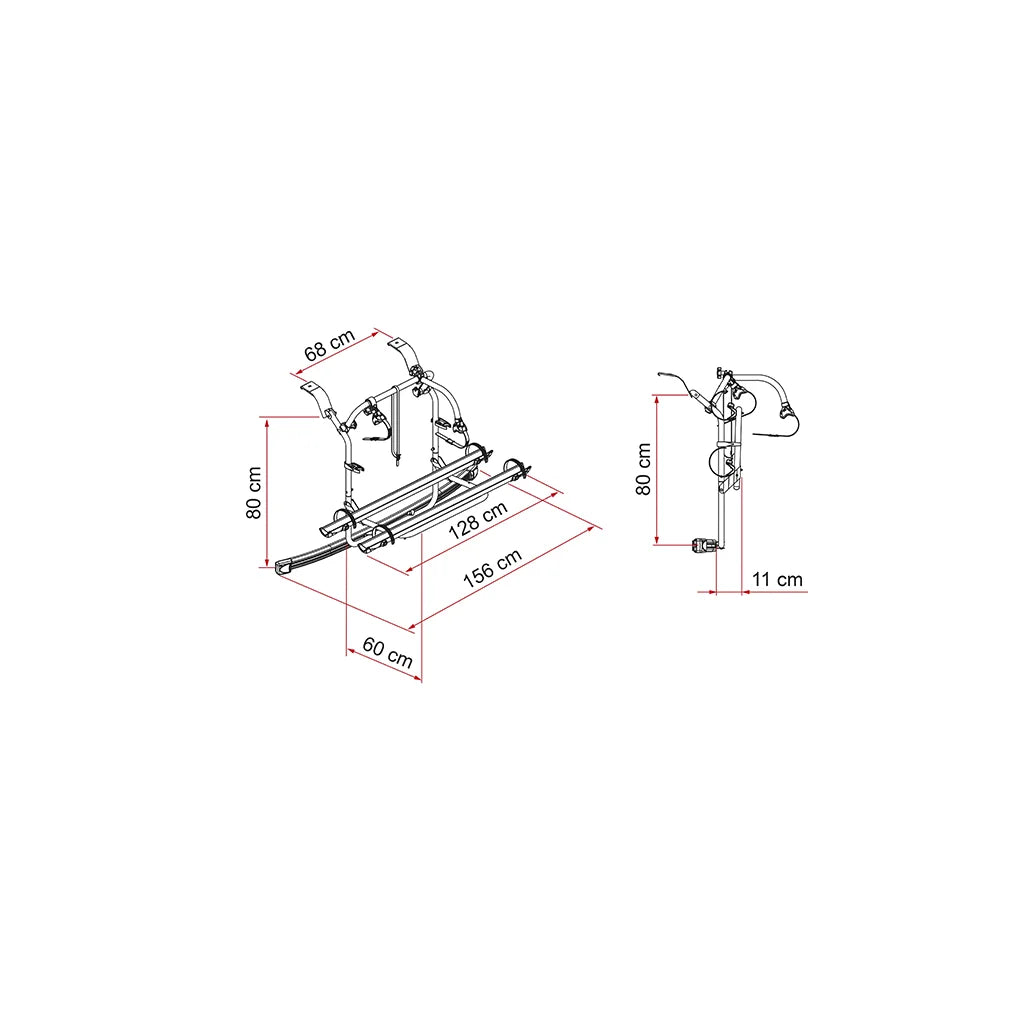

Technical Specs: Colour: Deep Black

Position: Tailgate

Vertical Wheelbase: 80 cm

Horizontal Wheelbase: 68 cm (distance between brackets)

Dimensions: 156 x 60 x 80 cm (standard open position)

Distance Between Rails: 15 cm

Licence Plate Carrier: Optional (sold separately)

Key Features

• Upper brackets
• Designed to follow the shape of the vehicle Curved bottom fixing-bar
• For greater adhesion to the tailgate Rail Plus
• New design for increased torsion and flexural strength Bike-Block
• To securely lock the bike Rail support base
• Made of aluminium to transport up to 3 bikes Installation
• On the tailgate of the vehicle

Specifications

• Vehicle type - Campervans
• Weight - 8.4kg
• Max load - 50kg
• Colour - Deep Black

Part number: 02096-07A | Barcode: 8004815438272
