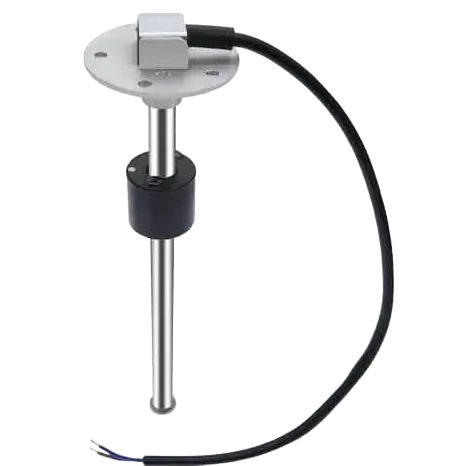

Tank Level Sender 100mm 0-190 Ohms (117391)

Tank Level Sender 100mm 0-190 Ohms - Caravan & Motorhome Fresh Water Tank

Monitor your fresh water supply accurately with this 100mm tank level sender. Designed for fitting to the side of a fresh water tank in a caravan or motorhome, it outputs a resistance signal between 0 and 190 ohms as the tank level changes — compatible with most standard leisure vehicle tank gauges and monitoring panels.

Key Features

• 100mm float arm length — suitable for medium-depth tanks
• 0–190 ohm output — standard resistance range compatible with most caravan/motorhome gauges
• Side-mount installation — fits through a standard sender port in the tank wall
• Float-arm design — accurate, reliable level indication
• Suitable for fresh water tanks in caravans and motorhomes
• Part number: 117391

Compatibility

The 0–190 ohm output range is a widely-used standard for leisure vehicle tank gauges. Before ordering, confirm your existing gauge or monitoring panel accepts a 0–190 ohm sender input. The 100mm arm length is most appropriate for tanks between approximately 150–300mm deep — measure tank depth at the sender port position before ordering.

Installation

Fit through the sender port in the tank wall and secure with the provided fixing arrangement. Connect the two-wire output to your gauge or monitoring panel, ensuring polarity is correct per the sender wiring instructions.

Part number: 117391  |  Barcode: N/A
