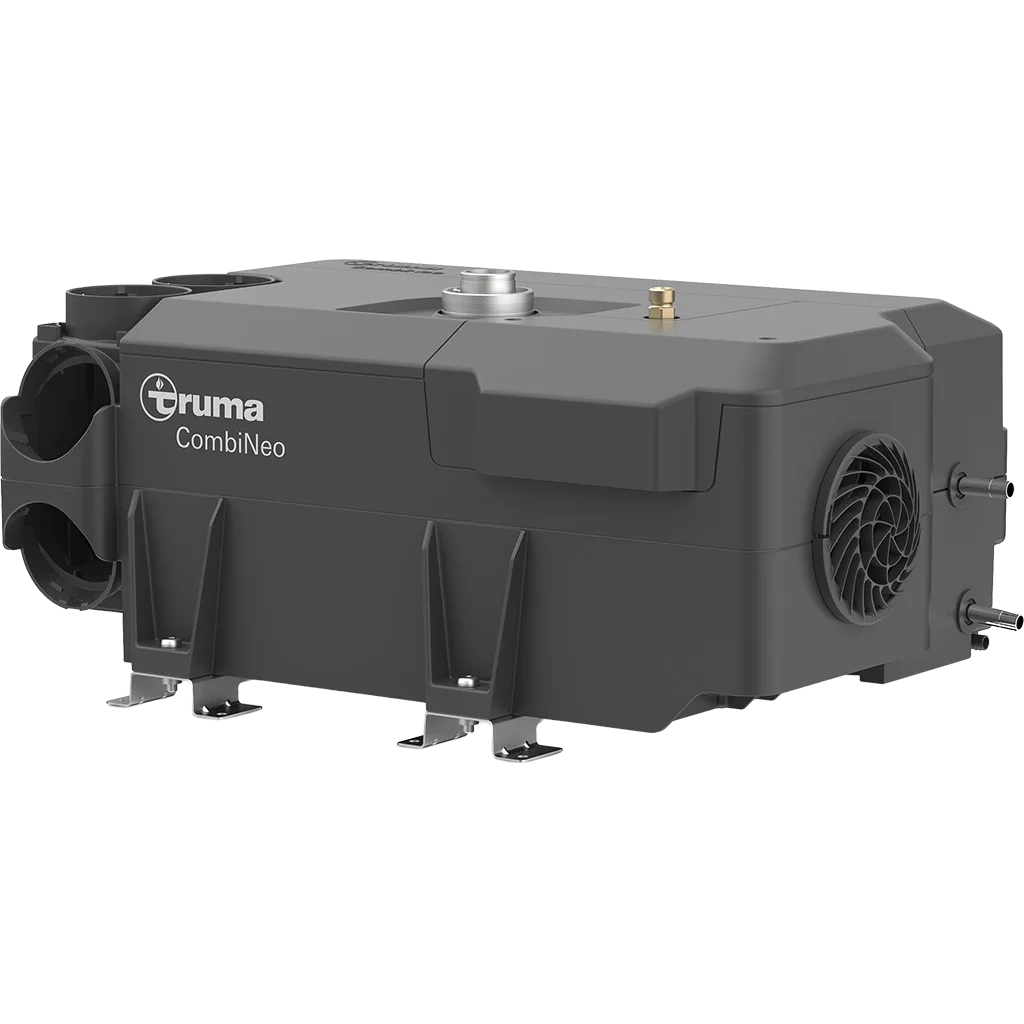

Truma Combi Neo 4E 35712-78

Truma Combi Neo 4E 35712-78

Endless* hot water: Perfect for long showers - no matter where or how many there are.

Short heat-up time: Hot water is available within 3 minutes.

Efficient heat: Fast and energy-saving heating up of the living area.

Electric option: Save gas by using the powerful 3kW electrical heating mode.

Made in Germany: Tried-and-test Truma quality for over 75 years.

Easy to use: Intuitive operation via the Truma iNet X panel or app.

Key Features

• Energy source Gas (propane/butane), electricity
• Operating pressure 30 mbar
• Rated heat output Gas operation Room heating 1.8 / 4.4 kW
• Rated heat output Gas operation Water heating max. 6.0 kW
• Rated heat output electrical mode Room heating 1 / 2 / 3 kW
• Rated heat output hybrid mode Room heating max 5.4 kW
• Rated heat output hybrid mode Water heating max 7.0 kW
• Gas consumption 135 - 335 g/h
• Power consumption 12 V Room heating 0.4 - 4.8 A
• Power consumption 12 V Water heating 0.4 - 3.8 A
• Power consumption 230 V 4 A / 8.7 A / 13.1 A
• Heating time for water Gas/hybrid operation Rinsing 3 minutes
• Heating time for water Gas/hybrid operation endless* showers 8 minutes
• Heating time Water Electric operation Rinsing 3 minutes
• Heating time Water Electric operation Showers 12 minutes
• Water content (at nominal pressure 2 bar) 5,6 l
• Weight without water and peripherals** 13.4 kg
• Weight without water and with peripherals** 14.6 kg
• Weight with water and peripherals** 20.2 kg
• Minimum installation dimensions (L x W x H) 555 x 380 x 310 mm
• Quiescent current 10 mA
• Maximum pump pressure Vehicle 2.8 bar
• Maximum system pressure Vehicle 4.5 bar

Specifications

• Dimensions (L x W x H) 518 x 367 x 200 mm

Part number: 35712-78
